Brand Name : barbed wire
Model Number : barbed wire
Certification : barbed wire
Place of Origin : China
MOQ : 100pcs
Payment Terms : 30%TT in advance, Balance before loading
Supply Ability : 100rolls
Delivery Time : 8-15days
Packaging Details : pallets
Material : mild steel
Gauge : 1.2mm
barbe distance : 13cm
weight per roll : 20kg per coil
length per roll : 500m
name : 10kgs 15kgs 17kgs 20kgs per roll 9 gauge military barbed wire pvc coated
14guage Hot Dipped Galvanized Barbed Wire Price Per Roll For Modern Security Fencing
14guage Galvanized Barbed Wire Price Per Roll
Barbed wire is a kind of modern security fencing materials,it can be installed as deterrent to the perimeter intruders with piecing and cutting razor blades mounted at the top of the wall . Galvanized barbed wire offers a great protection against corrosion anoxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts. It used for Military, boundary, railway, highway isolation protection
Barbed Wire Materials:
Material: high-quality low carbon steel wire, stainless steel wire, medium carbon steel wire(galvanized, plastic coated, plastic sprayed)
Assortment:
Electro-galvanized Barbed Wire,
Hot Dipped Barbed Wire and
PVC Barbed Wire
Barbed wire weave types:
1) single strand barbed wire,
2) double-strand reverse twisted barbed wire;
3) double-strand common twisted barbed wire
Common Gauge of Strand and Barb:
1.8X1.8mm / 2.0X2.0mm / 2.2X2.0mm / 2.2X2.2mm / 2.5X2.0mm / 2.5X2.2mm / 2.6X2.2mm / 2.7X2.2mm / 2.8X2.2mm /
3.0X2.0mm.
Barb Spacing: 3''-6'.
Barbed Wire Roll Length:200m/250m/400m/500m/600m.
Characteristic: firm and beautiful.
Barbed Wire Uses:
Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. barbed wire is suitable for industry, agriculture,
animal husbandry, dwelling house, plantation or fencing.
It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection.
Advantages: Because of its convenient delivery, easy installment and unique modal, enable it can bring wonderful protective effects.
Specification of Barbed Wire | ||||
Gauge of Strand and Barb in BWG(Anne X3) | Approximate Length per kilogram in Meter | |||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
12x12 | 6.0167 | 6.7590 | 7.2700 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13x13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
Wire gauge | Weight 10kgs per coil | Weight 15kgs per coil | Weight 25kgs per coil | |||
1X20FCL | Length | 1X20FCL | Length | 1X20FCL | Length | |
16#X16# | 15TONS | 160M | 15TONS | 240M | 16TONS | 400M |
16#X14# | 16TONS | 125M | 16TONS | 180M | 17TONS | 300M |
14#X14# | 17TONS | 100M | 17TONS | 150M | 18TONS | 250M |
14#X12# | 18TONS | 80M | 18TONS | 120M | 19TONS | 200M |
12#X12# | 19TONS | 65M | 19TONS | 100M | 20TONS | 160M |
The others can make according to custmoers request.
Application:
Barbed wire is mainly used in protecting of grass boundary,railway,highway,nation defence,airport,orchard,etc. It has a excellent protective performance,beautiful appearance, various patterns.
![]() |

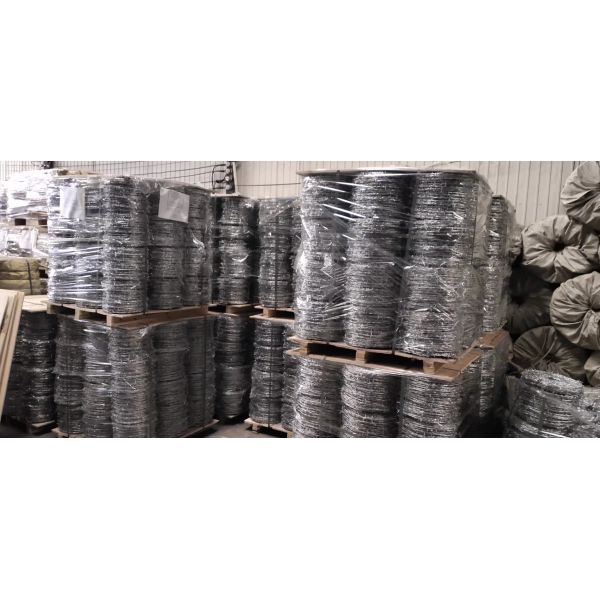

14 Guage Hot Dipped Galvanized Barbed Wire For Modern Security Fencing Images |
